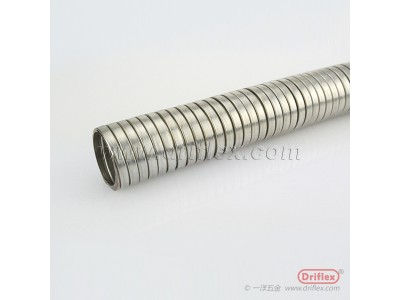

304不锈钢双扣波纹管
| 型号 Part No. | 规格 | 通径 | 内径(mm) | 外径(mm) | 包装（m/coil) |
| 不锈钢钢带（ISS) | Inch | mm | I.D. | O.D. | Packing |
| FM‐4ISS | Ф4 | 4.0 | 6.0 | 100 | |
| FM‐5ISS | Ф5 | 5.0 | 7.0 | 100 | |
| FM‐6ISS | Ф6 | 6.0 | 8.0 | 100 | |
| FM‐7ISS | Ф7 | 7.4 | 10.0 | 100 | |
| FM‐9ISS | 1/4" | Ф10 | 9.5 | 12.7 | 50 |
| FM‐10ISS | 3/8" | Ф12 | 12.5 | 15.7 | 50 |
| FM‐11ISS | 1/2" | Ф16 | 16.1 | 19.5 | 50 |
| FM‐12ISS | 5/8" | 19.1 | 22.2 | 50 | |
| FM‐14ISS | 13/16" | 22.0 | 25.7 | 40 | |
| FM‐15ISS | 1" | Ф25 | 26.0 | 30.0 | 30 |
| FM‐16ISS | 1‐1/4" | Ф32 | 34.0 | 39.0 | 30 |
| FM‐17ISS | 1‐1/2" | Ф38 | 39.0 | 44.0 | 30 |
| FM‐18ISS | 2" | Ф51 | 51.0 | 56.0 | 20 |
