点击下图片即可查看大图

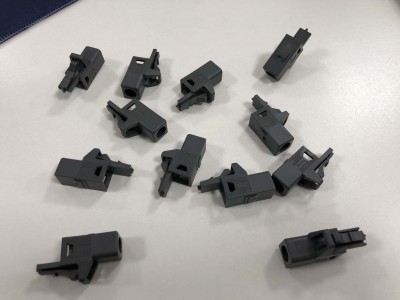

GT17HN2-4DS-HU是一颗需要多配件组合的广濑料，具体搭配方式可咨询苏州乔讯电子
特点
车用屏蔽连接器(2mm引脚间距)用于网络, 高速通讯
1. 全面屏蔽结构.
2. 理想的车用U连接器.
产品规格
|
参数 |
|
|
产品名称 |
GT17HN2-4DS-HU |
|
CL No. |
CL0767-02-8-00 |
|
连接器类型 |
外壳 |
|
部件部分 |
Housing |
|
PIN数 |
4 |
|
(嵌合部分)列数 |
2 |
|
连接器长度(间距方向) |
9.6mm |
|
连接器宽度(纵向) |
24.85mm |
|
连接器高度 |
19.2mm |
|
开口方向 |
直角 |
|
插拔次数 |
30 |
|
外壳颜色 |
深灰色 |
|
适合电线类型 |
屏蔽电缆 |
|
(x.)使用温度范围 |
105℃ |
|
(Min.)使用温度范围 |
-40℃ |
|
锁定方式 |
插销锁扣 |
|
电气性能 |
|
|
额定电流 |
1.0A |
|
(AC)额定电压 |
AC250.0V |
|
接触电阻 |
30.0mΩx. |
|
耐电压 |
650Vx. |
|
传输规格 |
U2.0,LVDS |
|
传输速度 |
1.0Gbps |
|
其他 |
|
|
包装形式装 |
单件包 |
|
购买的单位数 |
100PCS |
|
质量 |
2.12g |
|
箱数 |
2000PCS |
GT17HN2-4DS-HU是一颗需要多配件组合的广濑料，具体搭配方式可咨询苏州乔讯电子
