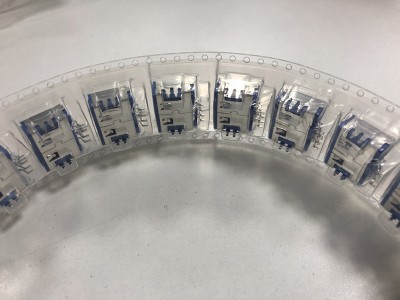

点击下图片即可查看大图
苏州乔讯电子周工提醒，后缀C是蓝色GT17H-4P-2DS(C)广濑HRS汽车料
GT17H/HN 系列
High Speed Data Tran*ission Shielded Connector with Positive Lock Meeting Automotive Spec. 2mm Pitch / 8.3mm(GT17H), 9.6mm(GT17HN) Height
特点
车用屏蔽连接器(2mm 引脚间距)用于网络, 高速通讯
1. 全面屏蔽结构.
2. 理想的车用U*连接器.
产品规格
|
产品信息 |
|
|
产品名称 |
GT17H-4P-2DS(C) |
|
连接器类型 |
插座 |
|
PIN数 |
4 |
|
(嵌合部分)列数 |
1 |
|
安装间距 |
2.0mm |
|
开口间距 |
2.0mm |
|
连接器长度(间距方向) |
15.45mm |
|
连接器宽度(纵向) |
13.95mm |
|
连接器高度 |
7.2mm |
|
安装方法 |
DIP穿孔 |
|
基板封装设计 |
板上 |
|
交错引线 |
无 |
|
推荐底板厚度 |
1.6ｍｍMax. |
|
开口方向 |
直角 |
|
插拔次数 |
30 |
|
接触部电镀 |
锡 |
|
电镀厚度 |
1.0μm |
|
外壳颜色 |
蓝色 |
|
适合电线类型 |
屏蔽电缆 |
|
(Max.)使用温度范围 |
105℃ |
|
(Min.)使用温度范围 |
-40℃ |
|
锁定方式 |
插销锁扣 |
|
电气性能 |
|
|
额定电流 |
1.0A |
|
(AC)额定电压 |
AC250.0V |
|
接触电阻 |
30.0mΩMax. |
|
耐电压 |
650VMax. |
|
传输规格 |
U*2.0,LVDS |
|
传输速度 |
1.0Gbps |
|
其他 |
|
|
(mm)宽度 |
0.5mm |
|
包装形式 |
卷盘 |
|
购买的单位数 |
300PCS |
|
质量 |
1.71g |
|
箱数 |
300PCS |
苏州乔讯电子周工提醒，后缀C是蓝色GT17H-4P-2DS(C)广濑HRS汽车料
