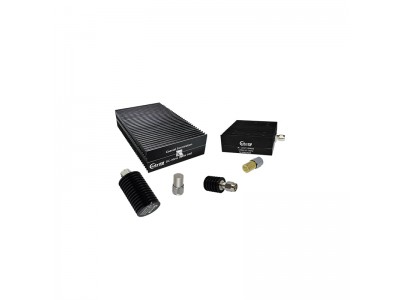

同轴终端(负载)
频率范围 DC-26.5GHz,高达2000W功率.
低插损,高隔离器,高功率.
可按客户要求订制生产.
同轴终端(负载)
|
型 号 |
频率范围 |
功率(W) |
连接形式 |
驻波比 |
阻抗匹配(Ω) |
|
UIYCT05AS3 |
DC-3GHz |
0.5 |
*A |
1.07 |
50 |
|
UIYCT05AS6 |
DC-6GHz |
1.1 |
|||
|
UIYCT05AS8 |
DC-8GHz |
1.15 |
|||
|
UIYCT05AS124 |
DC-12.4GHz |
1.2 |
|||
|
UIYCT05AS18 |
DC-18GHz |
1.3 |
|||
|
UIYCT2AS3 |
DC-3GHz |
2 |
*A |
1.07 |
50 |
|
UIYCT2AS6 |
DC-6GHz |
1.1 |
|||
|
UIYCT2AS8 |
DC-8GHz |
1.15 |
|||
|
UIYCT2AS124 |
DC-12.4GHz |
1.2 |
|||
|
UIYCT2AS18 |
DC-18GHz |
1.3 |
|||
|
UIYCT2AS265 |
DC-26.5GHz |
1.3 |
|||
|
UIYCT2AN3 |
DC-3GHz |
2 |
N |
1.15 |
50 |
|
UIYCT2AN6 |
DC-6GHz |
1.2 |
|||
|
UIYCT2AN124 |
DC-12.4GHz |
1.25 |
|||
|
UIYCT2AN18 |
DC-18GHz |
1.25 |
|||
|
UIYCT2ABNC3 |
DC-3GHz |
2 |
BNC |
1.2 |
50 |
|
UIYCT2ABNC6 |
DC-6GHz |
1.25 |
|||
|
UIYCT5AS3 |
DC-3GHz |
5 |
*A |
1.2 |
50 |
|
UIYCT5AS6 |
DC-6GHz |
1.25 |
|||
|
UIYCT5AS124 |
DC-12.4GHz |
1.2 |
|||
|
UIYCT5AS18 |
DC-18GHz |
1.2 |
|||
|
UIYCT5AS265 |
DC-26.5GHz |
1.3 |
|||
|
UIYCT5AN3 |
DC-3GHz |
5 |
N |
1.2 |
50 |
|
UIYCT5AN6 |
DC-6GHz |
1.25 |
|||
|
UIYCT5AN124 |
DC-12.4GHz |
1.2 |
|||
|
UIYCT5AN18 |
DC-18GHz |
1.3 |
|||
|
UIYCT10AS3 |
DC-3GHz |
10 |
*A |
1.2 |
50 |
|
UIYCT10AS6 |
DC-6GHz |
1.25 |
|||
|
UIYCT10AS124 |
DC-12.4GHz |
1.25 |
|||
|
UIYCT10AS18 |
DC-18GHz |
1.25 |
|||
|
UIYCT10AS265 |
DC-26.5GHz |
1.35 |
|||
|
UIYCT10AN3 |
DC-3GHz |
10 |
N |
1.2 |
50 |
|
UIYCT10AN6 |
DC-6GHz |
1.25 |
|||
|
UIYCT10AN124 |
DC-12.4GHz |
1.3 |
|||
|
UIYCT10AN18 |
DC-18GHz |
1.35 |
|||
|
UIYCT25AN3 |
DC-3GHz |
25 |
N |
1.2 |
50 |
|
UIYCT25AN6 |
DC-6GHz |
1.25 |
|||
|
UIYCT25AN8 |
DC-8GHz |
1.25 |
|||
|
UIYCT25AN124 |
DC-12.4GHz |
1.2 |
|||
|
UIYCT25AN18 |
DC-18GHz |
1.35 |
|||
|
UIYCT30AN3 |
DC-3GHz |
30 |
N |
1.15 |
50 |
|
UIYCT30AN6 |
DC-6GHz |
1.25 |
|||
|
UIYCT50AN3 |
DC-3GHz |
50 |
N |
1.2 |
50 |
|
UIYCT50AN6 |
DC-6GHz |
1.25 |
|||
|
UIYCT50AN124 |
DC-12.4GHz |
1.3 |
|||
|
UIYCT50AN18 |
DC-18GHz |
1.35 |
|||
|
UIYCT80AN3 |
DC-3GHz |
80 |
N |
1.2 |
50 |
|
UIYCT80AN6 |
DC-6GHz |
1.25 |
|||
|
UIYCT100AN3 |
DC-3GHz |
100 |
N |
1.2 |
50 |
|
UIYCT100AN6 |
DC-6GHz |
1.25 |
|||
|
UIYCT100AN124 |
DC-12.4GHz |
1.3 |
|||
|
UIYCT100AN18 |
DC-18GHz |
1.4 |
|||
|
UIYCT150AN3 |
DC-3GHz |
150 |
N |
1.2 |
50 |
|
UIYCT150AN6 |
DC-6GHz |
1.25 |
|||
|
UIYCT200AN3 |
DC-3GHz |
200 |
N |
1.2 |
50 |
|
UIYCT200AN6 |
DC-6GHz |
1.25 |
|||
|
UIYCT300AN3 |
DC-3GHz |
300 |
N |
1.25 |
50 |
|
UIYCT300AN6 |
DC-6GHz |
1.3 |
|||
|
UIYCT300A7163 |
DC-3GHz |
300 |
7/16 |
1.25 |
50 |
|
UIYCT300A7166 |
DC-6GHz |
1.3 |
|||
|
UIYCT500AN3 |
DC-3GHz |
500 |
N |
1.3 |
50 |
|
UIYCT500AN6 |
DC-6GHz |
1.35 |
|||
|
UIYCT500A7163 |
DC-3GHz |
500 |
7/16 |
1.3 |
50 |
|
UIYCT500A7166 |
DC-6GHz |
1.35 |
|||
|
UIYCT1000A |
DC-3GHz |
1000 |
7/16 |
1.25 |
50 |
|
UIYCT2000A |
DC-3GHz |
2000 |
7/16 |
1.3 |
50 |
