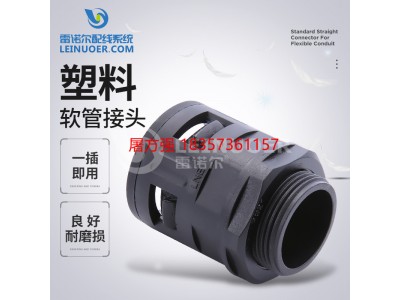

点击下图片即可查看大图
|
型号 |
软管规格 |
螺纹尺寸公制 |
AG外径(mm) |
AG内径(mm) |
GL(mm) |
H |
包装单位个/包 |
|
LNE-*-G-M12 |
AD10.0 |
M12×1.5 |
12 |
6.5 |
10 |
22.5 |
100 |
|
LNE-*-G-M12 |
AD13.0 |
M12×1.6 |
12 |
8 |
10 |
26 |
100 |
|
LNE-*-G-M16 |
AD13.0 |
M16×1.5 |
16 |
10 |
10 |
23 |
100 |
|
LNE-*-G-M18 |
AD13.0 |
M18×1.5 |
16 |
10 |
11.5 |
23 |
100 |
|
LNE-*-G-M20 |
AD13.0 |
M20×1.5 |
16 |
10 |
11.5 |
23 |
100 |
|
LNE-*-G-M18 |
AD15.8 |
M16×1.5 |
18 |
12 |
10 |
24 |
50 |
|
LNE-*-G-M16 |
AD15.8 |
M18×1.5 |
18 |
12 |
11.5 |
24 |
50 |
|
LNE-*-G-M20 |
AD15.8 |
M20×1.5 |
16 |
12 |
11.5 |
24 |
50 |
|
LNE-*-G-M20 |
AD18.5 |
M20×2.0 |
20 |
14.3 |
12 |
25.5 |
50 |
|
LNE-*-G-M20 |
AD21.2 |
M20×1.5 |
20 |
17 |
13 |
27 |
50 |
|
LNE-*-G-M24 |
AD21.2 |
M24×2.0 |
24 |
17 |
13 |
27 |
50 |
|
LNE-*-G-M25 |
AD21.2 |
M25×1.5 |
25 |
17 |
13 |
27 |
50 |
|
LNE-*-G-M25 |
AD25.0 |
M25×1.5 |
25 |
20 |
14 |
30 |
50 |
|
LNE-*-G-M25 |
AD28.5 |
M25×1.5 |
25 |
23 |
20 |
34 |
50 |
|
LNE-*-G-M27 |
AD28.5 |
M27×2.0 |
27 |
23 |
14 |
34 |
50 |
|
LNE-*-G-M32 |
AD34.5 |
M32×1.5 |
32 |
29 |
20 |
36 |
20 |
|
LNE-*-G-M36 |
AD34.5 |
M36×2.0 |
36 |
29 |
14 |
36 |
20 |
|
LNE-*-G-M40 |
AD34.5 |
M40×1.5 |
40 |
29 |
15 |
38.5 |
20 |
|
LNE-*-G-M40 |
AD42.5 |
M40×1.5 |
40 |
36 |
15 |
38.5 |
10 |
|
LNE-*-G-M48 |
AD42.5 |
M48×2.0 |
48 |
36 |
15 |
38.5 |
10 |
|
LNE-*-G-M50 |
AD54.5 |
M50×1.5 |
50 |
38 |
16 |
39 |
10 |
|
LNE-*-G-M60 |
AD54.5 |
M63×1.5 |
60 |
53 |
16 |
39 |
10 |
|
LNE-*-G-M63 |
AD54.6 |
M60×2.1 |
63 |
53 |
16 |
39 |
10 |
|
|
|
|
|
|
|
|
|
|
型号 |
软管规格 |
螺纹尺寸公制 |
AG外径(mm) |
AG内径(mm) |
GL(mm) |
H |
|
|
LNE-*-G-PG7 |
AD10.0 |
PG7 |
12.3 |
6.5 |
11.5 |
18 |
|
|
LNE-*-G-PG9 |
AD13.0 |
PG9 |
15 |
10 |
11.5 |
19 |
|
|
LNE-*-G-PG11 |
AD15.8 |
PG11 |
18.4 |
12.5 |
12 |
23 |
|
|
LNE-*-G-PG13.5 |
AD18.5 |
PG13.5 |
20.2 |
14.3 |
12 |
25 |
|
|
LNE-*-G-PG16 |
AD21.2 |
PG16 |
22.3 |
17 |
13 |
27 |
|
|
LNE-*-G-PG21 |
AD28.5 |
PG21 |
28 |
23 |
13 |
33 |
|
|
LNE-*-G-PG29 |
AD34.5 |
PG29 |
36.7 |
29 |
15 |
35 |
|
|
LNE-*-G-PG36 |
AD42.5 |
PG36 |
46.7 |
36 |
15 |
38.5 |
|
|
LNE-*-G-PG48 |
AD54.5 |
PG48 |
59 |
53 |
16 |
39 |
|
|
|
|
|
|
|
|
|
|
|
型号 |
软管规格 |
螺纹尺寸公制 |
AG外径(mm) |
AG内径(mm) |
GL(mm) |
H |
|
|
LNE-*-G1/2 |
AD21.2 |
G1/2 |
24 |
17 |
13 |
27 |
|
|
LNE-*-G1/2 |
AD25.0 |
G1/2 |
25 |
20 |
14 |
30 |
|
|
LNE-*-G3/4 |
AD28.5 |
G3/4 |
27 |
23 |
14 |
34 |
|
|
LNE-*-G1″ |
AD34.5 |
G1″ |
36 |
29 |
14 |
36 |
详情请致电 屠方强 18357361157
